December 1, 2011

Installing a Digital Light Timer

If you happened to catch yesterday's  Wordless Wednesday post, you know that things we're going well for us.  But today's post is really all about how your home's electrical isn't really as scary or complicated as it looks.  Stick with me, we're getting there.

We had purchased a digital timer for our exterior lights back in this post, and I was finally getting around to installing it.  We installed one of these timers on our front light back in The Bungalow, and I loved the convenience and security of always having the lights on when you return home from work, with the money saving feature of having the light go off automatically.  Our new home sports 3 exterior lights over each of the garage stalls, which looks really cool, but unfortunately we can’t see them from the front door.  Coupled with a 3 way switch, we could never tell if these lights were on or off, which caused us to waste a lot of electricity.  The timer also has a pretty fancy feature where you plug in your zone and time, and the lights can automatically adjust to go on at dusk and off at dawn through out the year.  And you know how we love being fancy.

So the plan was to swap out for the new switch, and because I can’t help but take on accidental projects, while I was at it, I was going to replace the other two almond color switches for white ones.   Seriously though, our house is full of mismatched switches, outlets and plates.  It’s enough to give this Type A blogger a nervous tick.

First things first, shut off the power.  It took about a dozen trips up and down 3 half flights of stairs before I discovered the 2 separate circuits that needed to be turned off. Seriously, nothing can ever be easy. I was about 15 minutes in and sweaty before I had even picked up a tool.  I’m turning you on now aren’t I?  Sorry about that.  Once the plate was off I double checked that all the circuits were out with my handy little tester.  These babies cost around $10-15, and are worth every penny.  Point at the wire, and if it’s hot the tester will light up and beep at you.  This is how I discovered there was a second circuit lurking in here and trying to kill me.  Smart huh?

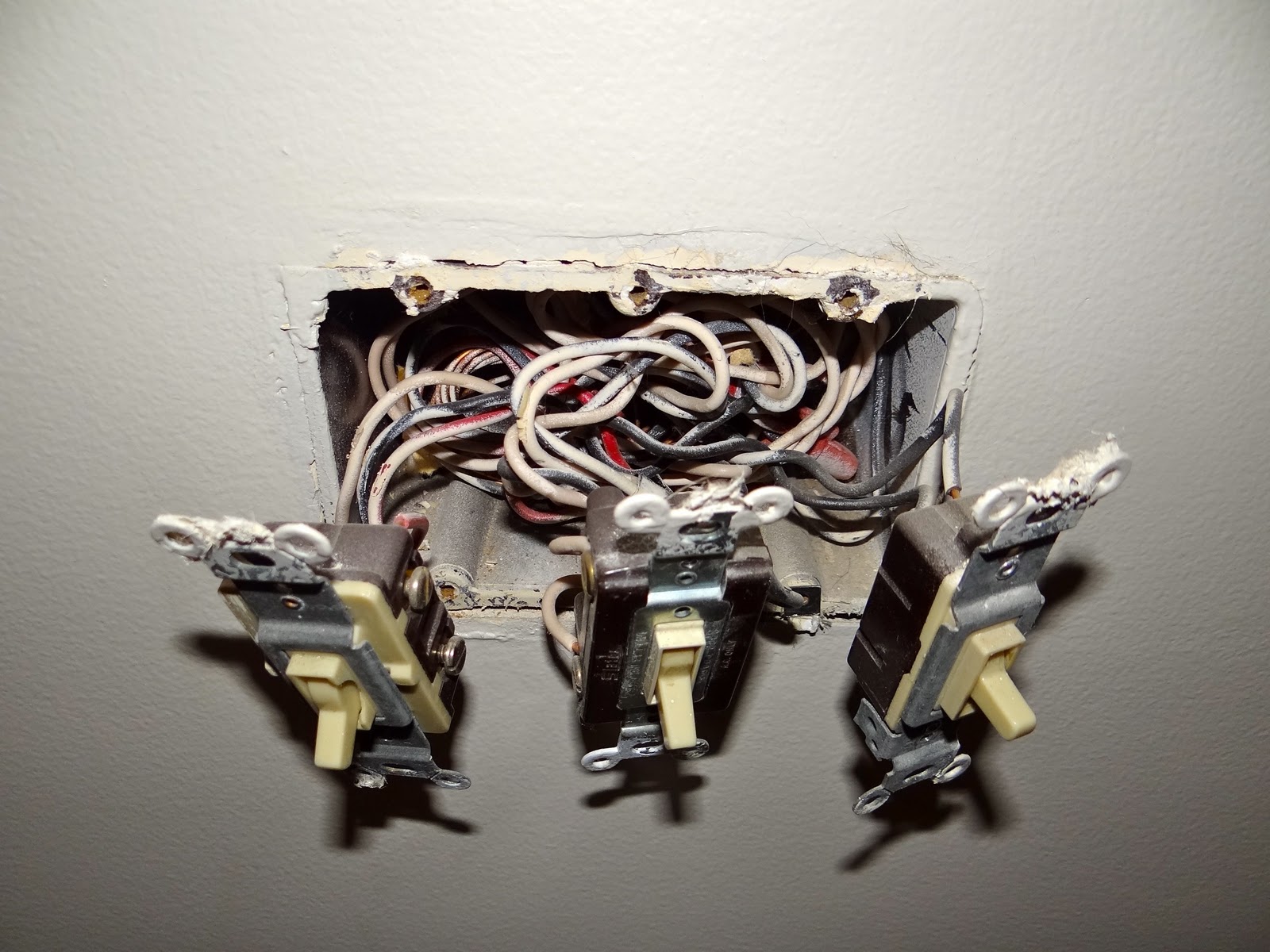

Then I removed all the screws holding in my switches, and pulled them out to see what I was dealing with.  There was a mess of 8 different wires in this bad boy, connecting one 4-way switch and two 3-way switches.  Luckily for me I had enough left over switches in my electrical bucket (whenever I’ve made a switch to put in a dimmer for example, I always save the switch I remove) and I happened to have both a 4-way and a 3-way switch in white.  Sweetness.

Basically there are two different ways to connect your wires to the terminal on the switch, you can wrap your wire around the screws on the sides, or place the wire in the holes in the back of the switch.

The second way is much easier for install, as the wires go in easily, but to remove them you have to press a small screwdriver in to a button on the back.  It’s sort of complicated to push in with the screw driver while pulling out on the wire, but not rocket science.

All I did was take the wires off the almond switches, and attached them to the new white switches in the exact same way.   Simple.  Until it was time to take on the timer.  Back in the Bungalow our front light was just on one switch, so it was a quick, five minute swap.  But like everything in this big, beautiful foreclosure of ours, nothing is ever easy.  The garage lights are on a 3-way switch, which meant working with all 5 different colored wires on our timer (Black, White, Red, Green and Blue), and making changes to both the switches in our front entry and in the garage.  Then the helpful diagram that came with the timer showed “the most common” 3-way switch wiring, which over course looked nothing like our set up.  And to make things even more complicated, our 3-way wiring was done backwards, so what is usually the Red wire was the Black, and the Black was the Red, which took me a few (read: 30) minutes to figure out.  I had every wire pulled out of the switch box just trying to figure out my mess, which is when I took a break to post my photo for you all.

Then it was time to find my sanity.  That is- my books.

The one on the left is the DIY bible my dad used to build the house I grew up in 25 years ago, and the one on the right is my bible we purchased just after purchasing our first home.  If you own a home and don’t have one of these books, go to the store right now, it’s worth it’s weight in gold.  While my book is much newer with cleaner photos, timelines and skill levels of each task:

I hang onto my Dad’s because it has some really helpful diagrams, especially for electrical.

So it was here that I could sit down and reevaluate my situation.  Electrical is really all about what we learned in third grade science, completing the circuit.  Basically from a light is a line that goes down to the switch, and then back from the switch up to the light.  Flip it “on”, and you leave the circuit on, it lights up.  Flipping it “off” closes the circuit, and your light goes off.  It gets a little more complicated, but the concept stays the same.  Books like mine and the internet can provide you with a diagram of anything you want to do, and the only important part is making sure you make clean, and safe connections at the terminals so that nothing comes apart in the box and starts a fire.  That’s more dramatic than it sounds, but you get the idea.  It’s really not that tough.  Well, usually.

In my case, after another 20 minutes or so of drawing out my mess on a piece of paper, I started to figure it out.  The Hubs heard,
    “So Red is Black, then Red connects to Blue, and if Black is common, then Black connects to Red, and White is actually my Red, so White connects to Red... Oh my gosh!  White is Red!  Jason, can you believe it?  White is actually Red!”  He looked at me for a moment like I had just escaped from Nick Nolte’s house and deadpanned,
    “No Erin.  I cannot believe it.  Wow.”  There was more than a bit of sarcasm there... I prefer to believe that he is just intimidated by my electrical genius, not appeasing a crazy person for his own safety.

Regardless, in the end we have this:

Instead of this:

Not to mention my exterior lights will be on and waiting for me to safely pull into my driveway this evening.  That's a major win in my book.  What about you guys- anyone else tackle their own electrical work?  Any other "Big wins" on the home front?  Anyone else's spouse think that they're certifiably insane?
